Oxycon^TM -10

FEATURES

Technical parameters

• Model: YS-800
• Flow rate: 10L/min adjustable
• Purity: 93%±3%
• Power supply: 220 V/50Hz or 110V/60Hz
• Power consumption: 850VA
• Noise: 60dB
• Operation environment: Temperature: 5℃-40℃ Humidity≤80% | Atmospheric pressure: 86kPa-106kPa
• Dimension: 335x320x620mm
• Packing Size: 445x390x755mm
• Net Weight: 19.2kgs
• Gross Weight: 21.7kgs
• Compressor: Germany imported pure copper oil free compressor
• Molecular Sieve: Z12-07, USA imported
• Filter: USA imported HEAP high efficiency filter
• Alarm: Power failure, Over-heat, Low O2 purity alarm
• Accessories: Nasal Cannula, adult mask, humidifier bottle, Oxygen tube, Nebulizer cup(optional)
• Warranty: Compressor 3 years, Other parts 1 year

NINE CHARACTERISTICS

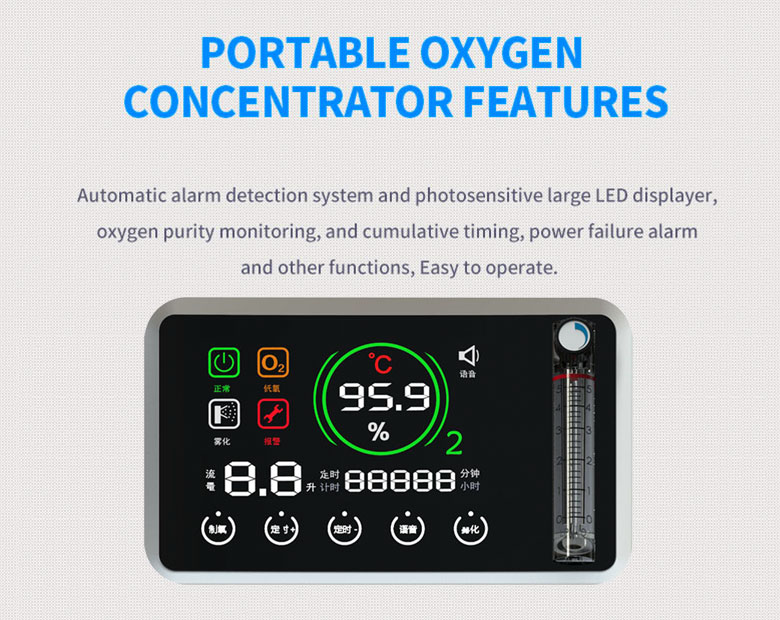

• Automatic alarm detection system and photosensitive LED display, oxygen purity monitoring, and cumulative timing, power failure alarm and other functions, Easy to operate.
• Zero friction solenoid valve design, performance and life are more stable and durable.

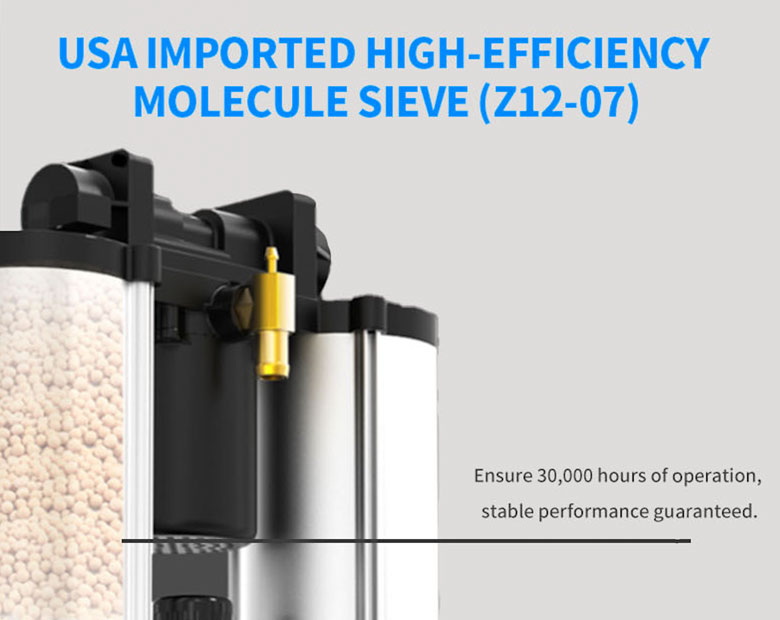

• Special high-efficiency Lithium Molecule (Z12-07), 30,000 hours of operation, stable performance and guaranteed.
• Fully modularized internal design, integrated oxygen module system, ensure quick and convenient installation and maintenance.
• High-efficiency and low-power design. Oxygen is produced within three minutes after power-on, and the oxygen purity is up to 93%±3%.
• HEAP high efficiency filter, can be used continuously for 5000 hours.
• HEAP high-efficiency bacterial filter (0.3um) to ensure that the oxygen produced is pure and sterile, in line with PM2.5 requirements.
• Multi-level noise reduction, low noise operation below 40dB.

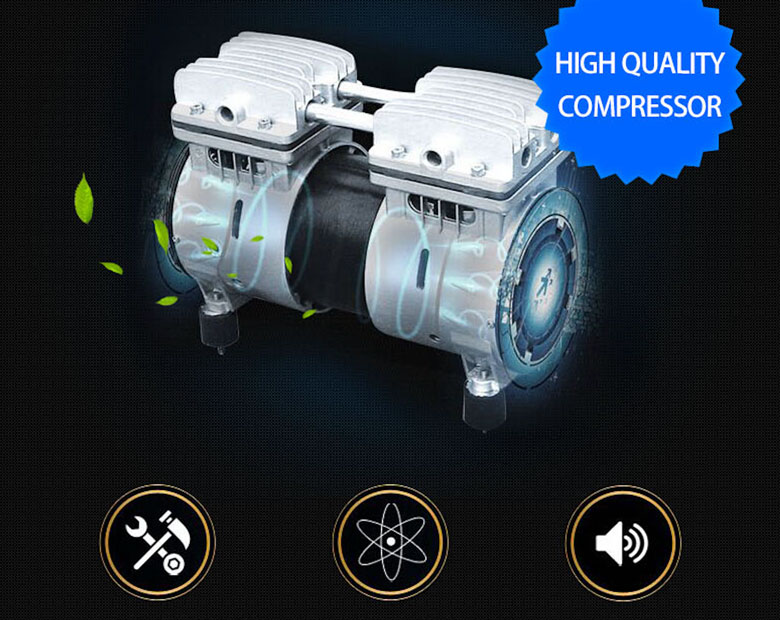

• Oil-free patented compressor, lifetime is over 25000 hours.
